Toyo Extensa HP II Tire Pressure Chart

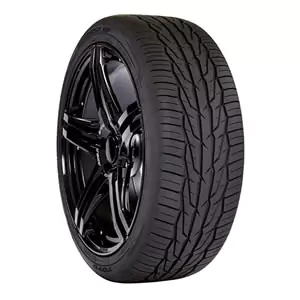

Toyo Extensa HP II
Amazon eBay TireRack

Toyo Extensa HP II tires come in 53 tire sizes with maximum tire load capacity of 1074 pounds to 937 pounds and maximum tire inflation of 50 psi to 51 psi.

Toyo Extensa HP II tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Toyo Extensa HP II tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Toyo Extensa HP II tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Toyo Extensa HP II tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Toyo Extensa HP II tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

185/55R16 83V

1074 lbs 51 psi

195/45R15 78V

937 lbs 51 psi

195/50R15 86V

1168 lbs 50 psi

195/50R16 84V

1102 lbs 51 psi

195/55R15 85V

1135 lbs 51 psi

195/55R16 87V

1201 lbs 51 psi

205/40R17 84W

1102 lbs 50 psi

205/45R16 87V

1201 lbs 50 psi

205/45R17 88W

1235 lbs 50 psi

205/50R16 91V

1356 lbs 50 psi

205/50R17 93W

1433 lbs 50 psi

205/55R16 94V

1477 lbs 50 psi

215/45R17 91W

1356 lbs 50 psi

215/50R17 95W

1521 lbs 50 psi

215/55R16 97V

1609 lbs 50 psi

215/55R17 94V

1477 lbs 51 psi

225/35R20 90W

1323 lbs 50 psi

225/40R18 92W

1389 lbs 50 psi

225/45R17 94W

1477 lbs 50 psi

225/45R18 95W

1521 lbs 50 psi

225/50R16 92V

1389 lbs 51 psi

225/50R17 98W

1653 lbs 50 psi

225/50R18 99W

1709 lbs 50 psi

225/55R17 97V

1609 lbs 51 psi

235/35R19 91W

1356 lbs 50 psi

235/40R18 95W

1521 lbs 50 psi

235/45R17 97W

1609 lbs 50 psi

235/45R18 94W

1477 lbs 51 psi

235/50R18 101W

1819 lbs 50 psi

235/55R17 99V

1709 lbs 51 psi

245/35R20 95W

1521 lbs 50 psi

245/40R18 97W

1609 lbs 50 psi

245/40R19 98W

1653 lbs 50 psi

245/40R20 99W

1709 lbs 50 psi

245/45R17 99W

1709 lbs 50 psi

245/45R18 100W

1764 lbs 50 psi

245/45R19 102W

1874 lbs 50 psi

245/45R20 103W

1929 lbs 50 psi

245/50R16 97V

1609 lbs 51 psi

245/55R18 103V

1929 lbs 51 psi

255/35R18 94W

1477 lbs 50 psi

255/35R19 96W

1565 lbs 50 psi

255/35R20 97W

1609 lbs 50 psi

255/45R17 98W

1653 lbs 51 psi

255/45R18 103W

1929 lbs 50 psi

265/35R22 102V

1874 lbs 50 psi

275/30R20 97W

1609 lbs 50 psi

275/35R20 102W

1874 lbs 50 psi

275/40R17 98W

1653 lbs 51 psi

275/40R18 99W

1709 lbs 51 psi

275/40R19 105W

2039 lbs 50 psi

275/40R20 106W

2094 lbs 50 psi

315/35R17 102W

1874 lbs 51 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
