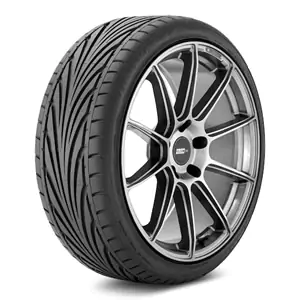

Toyo Proxes T1R Tire Pressure Chart

Toyo Proxes T1R
Amazon eBay TireRack

Toyo Proxes T1R tires come in 24 tire sizes with maximum tire load capacity of 1047 pounds to 937 pounds and maximum tire inflation of 44 psi to 50 psi.

Toyo Proxes T1R tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Toyo Proxes T1R tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Toyo Proxes T1R tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Toyo Proxes T1R tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Toyo Proxes T1R tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

185/55R15 82V

1047 lbs 44 psi

195/45R15 78V

937 lbs 44 psi

195/55R16 91V

1356 lbs 50 psi

235/35R19 91Y

1356 lbs 50 psi

245/30R20 90Y

1323 lbs 50 psi

245/45R16 94W

1477 lbs 44 psi

255/30R20 92Y

1389 lbs 50 psi

255/30R21 93Y

1433 lbs 50 psi

255/30R22 95Y

1521 lbs 50 psi

255/35R19 96Y

1565 lbs 50 psi

255/35R20 97Y

1609 lbs 50 psi

265/30R22 97Y

1609 lbs 50 psi

275/30R19 96Y

1565 lbs 50 psi

275/30R20 97Y

1609 lbs 50 psi

285/25R20 93Y

1433 lbs 50 psi

285/25R22 95Y

1521 lbs 50 psi

285/30R21 100Y

1764 lbs 50 psi

295/25R21 96Y

1565 lbs 50 psi

295/25R22 97Y

1609 lbs 50 psi

305/25R20 97Y

1609 lbs 50 psi

305/30R20 103Y

1929 lbs 50 psi

315/25R19 98Y

1653 lbs 50 psi

315/25R20 99Y

1709 lbs 50 psi

345/25R20 104Y

1984 lbs 50 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
