Nexen Roadian HTX RH5 Tire Pressure Chart

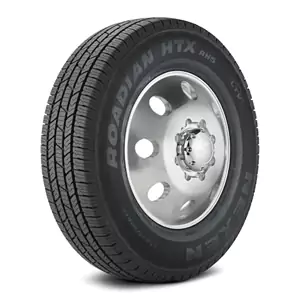

Nexen Roadian HTX RH5

Nexen Roadian HTX RH5 tires come in 49 tire sizes with maximum tire load capacity of 1764 pounds to 3417/3086 pounds and maximum tire inflation of 50 psi to 80 psi.

Nexen Roadian HTX RH5 tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Nexen Roadian HTX RH5 tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Nexen Roadian HTX RH5 tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Nexen Roadian HTX RH5 tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Nexen Roadian HTX RH5 tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

225/65R17 102H

1874 lbs 51 psi

225/70R15 100S

1764 lbs 51 psi

225/70R16 103T

1929 lbs 51 psi

225/75R16 108S

2205 lbs 50 psi

235/60R18 103V

1929 lbs 51 psi

235/65R17 108H

2205 lbs 50 psi

235/65R18 110H

2337 lbs 50 psi

235/70R15 103S

1929 lbs 51 psi

235/70R16 106T

2094 lbs 51 psi

235/70R17 111T

2403 lbs 50 psi

235/75R15 109S

2271 lbs 50 psi

235/75R16 108T

2205 lbs 51 psi

245/60R18 105H

2039 lbs 51 psi

245/60R20 107H

2149 lbs 51 psi

245/65R17 111H

2403 lbs 50 psi

245/70R16 111T

2403 lbs 50 psi

245/70R17 110T

2337 lbs 51 psi

245/75R16 111S

2403 lbs 51 psi

255/60R19 109H

2271 lbs 51 psi

255/65R16 109H

2271 lbs 51 psi

255/65R17 110S

2337 lbs 51 psi

255/65R18 111T

2403 lbs 51 psi

255/70R16 111S

2403 lbs 51 psi

255/70R17 112T

2469 lbs 51 psi

255/70R18 113T

2535 lbs 51 psi

265/50R20 107V

2149 lbs 51 psi

265/60R18 110H

2337 lbs 51 psi

265/65R17 112H

2469 lbs 51 psi

265/65R18 114S

2601 lbs 51 psi

265/70R15 112S

2469 lbs 51 psi

265/70R16 112S

2469 lbs 51 psi

265/70R17 115T

2679 lbs 51 psi

265/70R18 116S

2756 lbs 51 psi

265/75R16 116T

2756 lbs 51 psi

275/55R20 113T

2535 lbs 51 psi

275/60R20 115S

2679 lbs 51 psi

275/65R18 116T

2756 lbs 51 psi

275/70R16 114S

2601 lbs 51 psi

285/45R22 114H

2601 lbs 50 psi

31x10.50R15 109S

2271 lbs 50 psi

LT215/85R16 115/112Q

2679/2469 lbs 80 psi

LT225/75R16 115/112Q

2679/2469 lbs 80 psi

LT235/80R17 120/117R

3086/2833 lbs 80 psi

LT235/85R16 120/116Q

3086/2756 lbs 80 psi

LT245/75R16 120/116Q

3086/2756 lbs 80 psi

LT245/75R17 121/118S

3197/2910 lbs 80 psi

LT265/70R17 121/118R

3197/2910 lbs 80 psi

LT265/75R16 123/120Q

3417/3086 lbs 80 psi

LT275/65R18 123/120S

3417/3086 lbs 80 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
