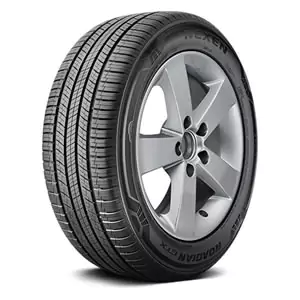

Nexen Roadian GTX Tire Pressure Chart
Nexen Roadian GTX tires come in 34 tire sizes with maximum tire load capacity of 1521 pounds to 2601 pounds and maximum tire inflation of 50 psi to 51 psi.
Nexen Roadian GTX tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Nexen Roadian GTX tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Nexen Roadian GTX tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Nexen Roadian GTX tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.
| Best Prices on Nexen Roadian GTX Tires | |
|---|---|
 |
|
 |
|
 from $155 |
|
 from $152 |
|
 from $154 |
|
As an associate, we earn commissions on qualifying purchases through the affiliate links on this website.
Select Nexen Roadian GTX tire size for its maximum tire inflation and load capacity.
| Tire Size | Max Load Capacity (single / dual rear wheels) |
Maximum Tire Pressure |
|---|---|---|
|
225/55R19 103V |
1929 lbs | 50 psi |
|
225/60R17 99H |
1709 lbs | 51 psi |
|
225/60R18 104H |
1984 lbs | 50 psi |
|
225/65R17 102V |
1874 lbs | 51 psi |
|
235/45R19 95H |
1521 lbs | 51 psi |
|
235/50R19 99H |
1709 lbs | 51 psi |
|
235/55R18 104V |
1984 lbs | 50 psi |
|
235/55R19 101H |
1819 lbs | 51 psi |
|
235/55R20 102V |
1874 lbs | 51 psi |
|
235/60R17 102H |
1874 lbs | 51 psi |
|
235/65R17 104H |
1984 lbs | 51 psi |
|
235/65R18 106H |
2094 lbs | 51 psi |
|
245/50R20 102V |
1874 lbs | 51 psi |
|
245/55R19 103V |
1929 lbs | 51 psi |
|
245/60R18 105H |
2039 lbs | 51 psi |
|
245/65R17 107V |
2149 lbs | 51 psi |
|
255/50R19 107H |
2149 lbs | 50 psi |
|
255/50R20 109V |
2271 lbs | 50 psi |
|
255/55R18 109V |
2271 lbs | 50 psi |
|
255/55R19 111V |
2403 lbs | 50 psi |
|
255/55R20 107H |
2149 lbs | 51 psi |
|
255/60R18 108H |
2205 lbs | 51 psi |
|
255/60R19 109H |
2271 lbs | 51 psi |
|
255/65R18 111T |
2403 lbs | 51 psi |
|
265/45R20 108H |
2205 lbs | 50 psi |
|
265/50R20 111V |
2403 lbs | 50 psi |
|
265/60R18 110H |
2337 lbs | 51 psi |
|
275/40R20 106W |
2094 lbs | 50 psi |
|
275/45R20 110V |
2337 lbs | 50 psi |
|
275/55R19 111V |
2403 lbs | 51 psi |
|
275/55R20 113H |
2535 lbs | 51 psi |
|
285/45R22 114H |
2601 lbs | 50 psi |
|
P235/60R18 103H |
1929 lbs | 51 psi |
|
P255/45R20 101W |
1819 lbs | 51 psi |
All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
