Bridgestone Dueler H/T 684 II Tire Pressure Chart

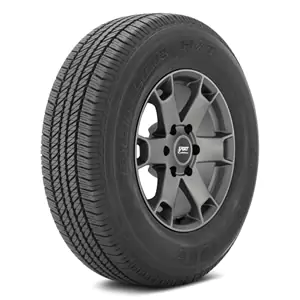

Bridgestone Dueler H/T 684 II
Amazon eBay TireRack

Bridgestone Dueler H/T 684 II tires come in 14 tire sizes with maximum tire load capacity of 1874 pounds to 2601 pounds and maximum tire inflation of 44 psi to 51 psi.

Bridgestone Dueler H/T 684 II tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Bridgestone Dueler H/T 684 II tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Bridgestone Dueler H/T 684 II tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Bridgestone Dueler H/T 684 II tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Bridgestone Dueler H/T 684 II tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

P235/60R18 102H

1874 lbs 44 psi

P245/60R20 107H

2149 lbs 44 psi

P245/70R17 108S

2205 lbs 44 psi

P245/75R16 109S

2271 lbs -- psi

P255/70R17 110S

2337 lbs 44 psi

P255/70R18 112T

2469 lbs 44 psi

P265/65R17 110S

2337 lbs 44 psi

P265/65R18 112S

2469 lbs 44 psi

P265/70R16 111S

2403 lbs -- psi

P265/70R17 113S

2535 lbs 44 psi

P275/50R22 111H

2403 lbs 44 psi

P275/60R20 114H

2601 lbs 44 psi

P275/65R18 114T

2601 lbs 44 psi

P285/60R18 114V

2601 lbs 51 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
