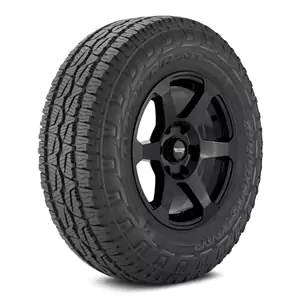

Bridgestone Dueler A/T Revo 3 Tire Pressure Chart

Bridgestone Dueler A/T Revo 3
Amazon eBay TireRack

Bridgestone Dueler A/T Revo 3 tires come in 36 tire sizes with maximum tire load capacity of 1984 pounds to 4079 pounds and maximum tire inflation of 44 psi to 80 psi.

Bridgestone Dueler A/T Revo 3 tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Bridgestone Dueler A/T Revo 3 tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Bridgestone Dueler A/T Revo 3 tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Bridgestone Dueler A/T Revo 3 tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Bridgestone Dueler A/T Revo 3 tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

265/50R20 107T

2149 lbs 44 psi

265/60R18 110T

2337 lbs 44 psi

LT245/75R16 120S

3086 lbs 80 psi

LT245/75R17 121R

3197 lbs 80 psi

LT255/75R17 111R

2403 lbs 50 psi

LT265/60R20 121R

3197 lbs 80 psi

LT265/70R17 121S

3197 lbs 80 psi

LT265/70R18 124R

3527 lbs 80 psi

LT265/75R16 123R

3417 lbs 80 psi

LT275/55R20 120S

3086 lbs 80 psi

LT275/65R18 123S

3417 lbs 80 psi

LT275/65R20 126S

3748 lbs 80 psi

LT275/70R18 125S

3638 lbs 80 psi

LT285/55R20 122S

3307 lbs 80 psi

LT285/60R20 125R

3638 lbs 80 psi

LT285/65R18 125S

3638 lbs 80 psi

LT285/70R17 121R

3197 lbs 80 psi

LT285/75R16 126R

3748 lbs 80 psi

LT295/70R18 129S

4079 lbs 80 psi

LT305/55R20 121S

3197 lbs 80 psi

LT315/70R17 121S

3197 lbs 65 psi

P225/75R16 104T

1984 lbs 44 psi

P245/65R17 105T

2039 lbs 44 psi

P245/70R17 108T

2205 lbs 44 psi

P245/75R16 109T

2271 lbs 44 psi

P255/70R18 112T

2469 lbs 44 psi

P265/65R17 110T

2337 lbs 44 psi

P265/65R18 112T

2469 lbs 44 psi

P265/70R16 111T

2403 lbs 44 psi

P265/70R17 113T

2535 lbs 44 psi

P265/70R18 114T

2601 lbs 44 psi

P265/75R16 114T

2601 lbs 44 psi

P275/55R20 111T

2403 lbs 44 psi

P275/60R20 114T

2601 lbs 44 psi

P275/65R18 114T

2601 lbs 44 psi

P285/70R17 117T

2833 lbs 44 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
