Bridgestone Dueler A/T Revo 2 Tire Pressure Chart

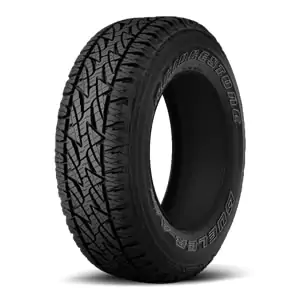

Bridgestone Dueler A/T Revo 2

Bridgestone Dueler A/T Revo 2 tires come in 40 tire sizes with maximum tire load capacity of 1929 pounds to 3748/3417 pounds and maximum tire inflation of 44 psi to 80 psi.

Bridgestone Dueler A/T Revo 2 tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Bridgestone Dueler A/T Revo 2 tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Bridgestone Dueler A/T Revo 2 tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Bridgestone Dueler A/T Revo 2 tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Bridgestone Dueler A/T Revo 2 tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

31x10.50R15 109S

2271 lbs 50 psi

LT235/85R16 120/116R

3086/2756 lbs 80 psi

LT245/70R17 119/116R

2998/2756 lbs 80 psi

LT245/75R16 120/116S

3086/2756 lbs 80 psi

LT245/75R17 121/118R

3197/2910 lbs 80 psi

LT255/75R17 111/108R

2403/2205 lbs 44 psi

LT265/70R17 121/118S

3197/2910 lbs 80 psi

LT265/75R16 123/120R

3417/3086 lbs 80 psi

LT275/65R18 123/120S

3417/3086 lbs 80 psi

LT275/65R20 126/123S

3748/3417 lbs 80 psi

LT275/70R18 125/122S

3638/3307 lbs 80 psi

LT285/65R18 125/122R

3638/3307 lbs 80 psi

LT285/70R17 121/118R

3197/2910 lbs 80 psi

LT285/75R16 126/123R

3748/3417 lbs 80 psi

LT315/70R17 121/118S

3197/2910 lbs 65 psi

P235/65R17 103T

1929 lbs 44 psi

P235/70R16 104T

1984 lbs 44 psi

P235/75R15 108T

2205 lbs 50 psi

P235/75R17 108T

2205 lbs 44 psi

P245/65R17 105T

2039 lbs 44 psi

P245/70R16 106T

2094 lbs 44 psi

P245/70R17 108T

2205 lbs 44 psi

P245/75R16 109T

2271 lbs 44 psi

P245/75R17 110T

2337 lbs 44 psi

P255/65R17 108T

2205 lbs 44 psi

P255/70R16 109T

2271 lbs 44 psi

P255/70R17 110T

2337 lbs 44 psi

P255/70R18 112T

2469 lbs 44 psi

P265/60R18 109T

2271 lbs 44 psi

P265/65R17 110T

2337 lbs 44 psi

P265/65R18 112T

2469 lbs 44 psi

P265/70R16 111T

2403 lbs 44 psi

P265/70R17 113T

2535 lbs 44 psi

P265/70R18 114T

2601 lbs 44 psi

P265/75R16 114T

2601 lbs 44 psi

P275/55R20 111T

2403 lbs 44 psi

P275/60R20 114T

2601 lbs 44 psi

P275/65R18 114T

2601 lbs 44 psi

P285/45R22 110H

2337 lbs 44 psi

P285/70R17 117T

2833 lbs 44 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
