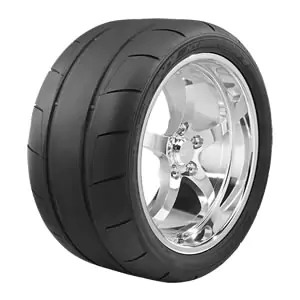

Nitto NT05R Tire Pressure Chart
Nitto NT05R tires come in 8 tire sizes with maximum tire load capacity of 1433 pounds to 1929 pounds and maximum tire inflation of 44 psi.
Nitto NT05R tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Nitto NT05R tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Nitto NT05R tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Nitto NT05R tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.
| Best Prices on Nitto NT05R Tires | |
|---|---|
 |
|
 |
|
As an associate, we earn commissions on qualifying purchases through the affiliate links on this website.
Select Nitto NT05R tire size for its maximum tire inflation and load capacity.
| Tire Size | Max Load Capacity (single / dual rear wheels) |
Maximum Tire Pressure |
|---|---|---|
|
P275/40R17 93 |
1433 lbs | 44 psi |
|
P285/40R18 96 |
1565 lbs | 44 psi |
|
P305/35R19 94 |
1477 lbs | 44 psi |
|
P305/45R18 103 |
1929 lbs | 44 psi |
|
P315/35R17 93 |
1433 lbs | 44 psi |
|
P315/35R20 97 |
1609 lbs | 44 psi |
|
P315/40R18 102 |
1874 lbs | 44 psi |
|
P345/30R19 98 |
1653 lbs | 44 psi |
All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
