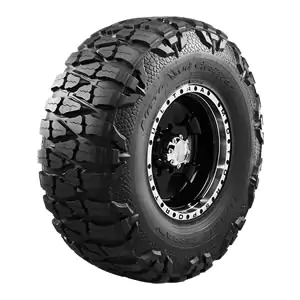

Nitto Mud Grappler Tire Pressure Chart

Nitto Mud Grappler tire pressure chart for 21 tire sizes with maximum tire load capacity range of 2271 to 4299 pounds and with maximum tire inflation range of 35 to 65 psi.

Select Nitto Mud Grappler tire size to find its maximum tire load capacity at its specified tire inflation. Tire load capacity and tire inflation settings may vary based on tire load range or ply rating. Check Nitto Mud Grappler tire sidewall for more information. Remember that psi value printed on the tire sidewall is the maximum tire pressure that Nitto Mud Grappler tire can be inflated to at its corresponding maximum weight capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Nitto Mud Grappler tires beyond the maximum tire load capacity and maximum tire inflation values indicated on the tire sidewall.

Check Nitto tire pressure charts for other Nitto tire models.

Amazing Deals and Deep Discounts on Tires

Nitto Mud Grappler Tire Pressure Chart

Tire Size Tire Size Type Tire Load Index Tire Speed Rating Maximum Tire Load Maximum Dual Tire Load Maximum Tire Inflation

33x12.50R17
120Q

Flotation 120 Q 3087 lbs 65 psi Show Specs

33x12.50R18
118Q

Flotation 118 Q 2911 lbs 65 psi Show Specs

33x12.50R20
114Q

Flotation 114 Q 2602 lbs 65 psi Show Specs

33x13.50R15
109Q

Flotation 109 Q 2271 lbs 35 psi Show Specs

35x12.50R17
125P

Flotation 125 P 3638 lbs 65 psi Show Specs

35x12.50R18
123Q

Flotation 123 Q 3418 lbs 65 psi Show Specs

35x12.50R20
121Q

Flotation 121 Q 3197 lbs 65 psi Show Specs

35x14.50R15
116Q

Flotation 116 Q 2756 lbs 35 psi Show Specs

37x13.50R17
131P

Flotation 131 P 4299 lbs 65 psi Show Specs

37x13.50R18
124P

Flotation 124 P 3528 lbs 50 psi Show Specs

37x13.50R20
127Q

Flotation 127 Q 3859 lbs 65 psi Show Specs

37x13.50R22
123Q

Flotation 123 Q 3418 lbs 65 psi Show Specs

38x15.50R15
123P

Flotation 123 P 3418 lbs 35 psi Show Specs

38x15.50R18
128Q

Flotation 128 Q 3969 lbs 50 psi Show Specs

38x15.50R20
125Q

Flotation 125 Q 3638 lbs 50 psi Show Specs

40x13.50R17
131Q

Flotation 131 Q 4299 lbs 50 psi Show Specs

40x15.50R20
130Q

Flotation 130 Q 4189 lbs 50 psi Show Specs

40x15.50R22
127Q

Flotation 127 Q 3859 lbs 50 psi Show Specs

LT305/70R16
124/121P

LT-Metric 124/121 P 3528 lbs 3197 lbs 65 psi Show Specs

LT315/75R16
127/124P

LT-Metric 127/124 P 3859 lbs 3528 lbs 65 psi Show Specs

LT385/70R16
130Q

LT-Metric 130 Q 4189 lbs 50 psi Show Specs

All tire pressure data listed is for informational purposes only. TirePressure.com does not warrant or make any representations regarding the use of or the results of the use of this information. Always refer to the information on your tire sidewall for maximum tire inflation and tire load capacity.
