Maxxis Bravo HT-770 Tire Pressure Chart

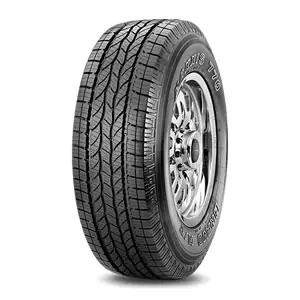

Maxxis Bravo HT-770

Maxxis Bravo HT-770 tires come in 46 tire sizes with maximum tire load capacity of 1764 pounds to 3748/3417 pounds and maximum tire inflation of 44 psi to 80 psi.

Maxxis Bravo HT-770 tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Maxxis Bravo HT-770 tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Maxxis Bravo HT-770 tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Maxxis Bravo HT-770 tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Maxxis Bravo HT-770 tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

215/70R16 100T

1764 lbs 44 psi

225/65R17 102H

1874 lbs 44 psi

225/70R16 107T

2149 lbs 50 psi

225/75R16 104T

1984 lbs 44 psi

235/65R16 107T

2149 lbs 50 psi

235/65R17 104H

1984 lbs 44 psi

235/70R15 107S

2149 lbs 50 psi

235/70R16 106T

2094 lbs 44 psi

235/70R17 111S

2403 lbs 50 psi

235/75R15 109S

2271 lbs 50 psi

235/75R16 112S

2469 lbs 50 psi

235/75R17 109S

2271 lbs 44 psi

245/65R17 111H

2403 lbs 50 psi

245/70R16 111S

2403 lbs 50 psi

245/70R17 110S

2337 lbs 44 psi

245/75R16 111S

2403 lbs 44 psi

245/75R17 112T

2469 lbs 44 psi

255/65R17 110S

2337 lbs 44 psi

255/70R16 111S

2403 lbs 44 psi

255/70R17 112S

2469 lbs 44 psi

255/70R18 113S

2535 lbs 44 psi

265/60R18 114H

2601 lbs 50 psi

265/65R17 112S

2469 lbs 44 psi

265/65R18 114H

2601 lbs 44 psi

265/70R16 112S

2469 lbs 44 psi

265/70R17 115T

2679 lbs 44 psi

265/70R18 116H

2756 lbs 44 psi

265/75R16 116T

2756 lbs 44 psi

275/55R20 117H

2833 lbs 50 psi

275/60R17 110S

2337 lbs 44 psi

275/60R20 115T

2679 lbs 44 psi

275/65R18 116T

2756 lbs 44 psi

LT225/75R16 115/112S

2679/2469 lbs 80 psi

LT225/75R17 116/113R

2756/2535 lbs 80 psi

LT235/80R17 120/117S

3086/2833 lbs 80 psi

LT235/85R16 120/116S

3086/2756 lbs 80 psi

LT245/70R17 119/116S

2998/2756 lbs 80 psi

LT245/75R16 120/116S

3086/2756 lbs 80 psi

LT245/75R17 121/118S

3197/2910 lbs 80 psi

LT265/60R20 121/118R

3197/2910 lbs 80 psi

LT265/70R17 121/118S

3197/2910 lbs 80 psi

LT265/70R18 124/121S

3527/3197 lbs 80 psi

LT265/75R16 123/120S

3417/3086 lbs 80 psi

LT275/65R18 123/120S

3417/3086 lbs 80 psi

LT275/65R20 126/123R

3748/3417 lbs 80 psi

LT275/70R18 125/122S

3638/3307 lbs 80 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
