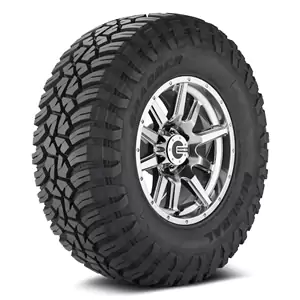

General Grabber X3 Tire Pressure Chart

General Grabber X3 tires come in 30 tire sizes with maximum tire load capacity of 2205 pounds to 4079/3748 pounds and maximum tire inflation of 35 psi to 80 psi.
General Grabber X3 tire load capacity and tire inflation settings may vary based on tire load index / load range. Check General Grabber X3 tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure General Grabber X3 tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate General Grabber X3 tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.
Best Prices on General Grabber X3 Tires | |
---|---|
![]() |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
Select General Grabber X3 tire size for its maximum tire inflation and load capacity.
Tire Size | Max Load Capacity (single / dual rear wheels) |
Maximum Tire Pressure |
---|---|---|
31x10.50R15 109Q |
2271 lbs | 50 psi |
33x10.50R15 114Q |
2601 lbs | 50 psi |
33x12.50R15 108Q |
2205 lbs | 35 psi |
33x12.50R17 114Q |
2601 lbs | 50 psi |
33x12.50R18 118Q |
2910 lbs | 65 psi |
33x12.50R20 114Q |
2601 lbs | 65 psi |
35x12.50R15 113Q |
2535 lbs | 35 psi |
35x12.50R17 121Q |
3197 lbs | 65 psi |
35x12.50R18 123Q |
3417 lbs | 65 psi |
35x12.50R20 121Q |
3197 lbs | 65 psi |
37x12.50R17 124Q |
3527 lbs | 50 psi |
37x12.50R18 128Q |
3968 lbs | 65 psi |
37x13.50R20 127Q |
3858 lbs | 65 psi |
LT255/75R17 111/108Q |
2403/2205 lbs | 50 psi |
LT265/70R17 121/118Q |
3197/2910 lbs | 80 psi |
LT265/70R18 124/121Q |
3527/3197 lbs | 80 psi |
LT265/75R16 112/109Q |
2469/2271 lbs | 50 psi |
LT275/65R18 123/120Q |
3417/3086 lbs | 80 psi |
LT275/65R20 126/123Q |
3748/3417 lbs | 80 psi |
LT275/70R18 125/122Q |
3638/3307 lbs | 80 psi |
LT285/70R17 121/118Q |
3197/2910 lbs | 80 psi |
LT285/75R16 126/123Q |
3748/3417 lbs | 80 psi |
LT295/55R20 123/120Q |
3417/3086 lbs | 80 psi |
LT295/65R20 129/126Q |
4079/3748 lbs | 80 psi |
LT295/70R17 121/118Q |
3197/2910 lbs | 80 psi |
LT295/70R18 129/126Q |
4079/3748 lbs | 80 psi |
LT305/55R20 121/118Q |
3197/2910 lbs | 65 psi |
LT315/70R17 121/118Q |
3197/2910 lbs | 80 psi |
LT315/75R16 127/124Q |
3858/3527 lbs | 65 psi |
All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
