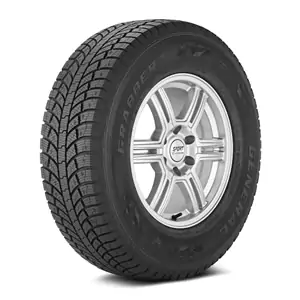

General Grabber Arctic Tire Pressure Chart

General Grabber Arctic tire pressure chart with tire load capacity and tire inflation settings for General Grabber Arctic tire sizes.

General Grabber Arctic tire model comes in 15 tire sizes with maximum tire load capacity range of 2271 to 2833 pounds and maximum tire inflation range of 51 to 51 psi. Select General Grabber Arctic tire size to find its maximum tire load capacity at its specified tire inflation. These values may vary based on tire load range or ply rating. Check General Grabber Arctic tire sidewall for more information. Remember that psi value printed on the tire sidewall is the maximum tire pressure that General Grabber Arctic tire can be inflated to at its corresponding maximum weight capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate General Grabber Arctic tires beyond the maximum tire load capacity and maximum tire inflation values indicated on tire sidewall.

Check General tire pressure charts for other General tire models.

General Grabber Arctic Tire Pressure Chart

Tire Size Tire Size Type Load Index Dual Load Index Speed Rating Load Range Maximum Load Maximum Dual Load Maximum Tire Pressure

235/70R16
109T XL

Metric 109 T XL 2271 lbs 51 psi Show Specs

245/60R18
109T XL

Metric 109 T XL 2271 lbs 51 psi Show Specs

245/65R17
111T XL

Metric 111 T XL 2403 lbs 51 psi Show Specs

245/70R17
114T XL

Metric 114 T XL 2601 lbs 51 psi Show Specs

245/75R16
115T XL

Metric 115 T XL 2679 lbs 51 psi Show Specs

255/55R18
109T XL

Metric 109 T XL 2271 lbs 51 psi Show Specs

255/65R18
115T XL

Metric 115 T XL 2679 lbs 51 psi Show Specs

265/60R18
114T XL

Metric 114 T XL 2601 lbs 51 psi Show Specs

265/65R17
116T XL

Metric 116 T XL 2756 lbs 51 psi Show Specs

265/65R18
116T XL

Metric 116 T XL 2756 lbs 51 psi Show Specs

265/70R16
116T XL

Metric 116 T XL 2756 lbs 51 psi Show Specs

265/70R17
116T XL

Metric 116 T XL 2756 lbs 51 psi Show Specs

275/55R20
117T XL

Metric 117 T XL 2833 lbs 51 psi Show Specs

275/60R20
116T SL

Metric 116 T SL 2756 lbs 51 psi Show Specs

275/65R18
116T XL

Metric 116 T XL 2756 lbs 51 psi Show Specs
