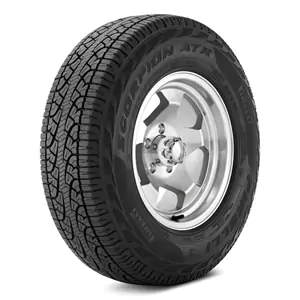

Pirelli Scorpion ATR Tire Pressure Chart

Pirelli Scorpion ATR
Amazon eBay TireRack

Pirelli Scorpion ATR tires come in 41 tire sizes with maximum tire load capacity of 1565 pounds to 3417 pounds and maximum tire inflation of 44 psi to 80 psi.

Pirelli Scorpion ATR tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Pirelli Scorpion ATR tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Pirelli Scorpion ATR tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Pirelli Scorpion ATR tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Pirelli Scorpion ATR tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

205/70R15 96T

1565 lbs 44 psi

225/60R17 99H

1709 lbs 44 psi

235/75R15 105T

2039 lbs 44 psi

255/60R18 112T

2469 lbs 50 psi

275/50R20 113H

2535 lbs 50 psi

275/65R18 116H

2756 lbs 44 psi

31x10.50R15 109S

2271 lbs 50 psi

325/55R22 116H

2756 lbs 44 psi

LT225/75R16 110S

2337 lbs 65 psi

LT235/75R15 110S

2337 lbs 65 psi

LT235/80R17 120R

3086 lbs 80 psi

LT235/85R16 120R

3086 lbs 80 psi

LT245/70R17 119R

2998 lbs 80 psi

LT245/75R16 120R

3086 lbs 80 psi

LT265/70R17 121S

3197 lbs 80 psi

LT265/75R16 123S

3417 lbs 80 psi

LT285/70R17 121R

3197 lbs 65 psi

LT285/75R16 122R

3307 lbs 65 psi

LT325/45R24 120S

3086 lbs 65 psi

LT325/55R22 120S

3086 lbs 44 psi

LT325/60R20 121S

3197 lbs 44 psi

P225/65R17 102H

1874 lbs 44 psi

P225/70R16 101T

1819 lbs 44 psi

P225/75R15 105T

2039 lbs 50 psi

P235/70R16 105T

2039 lbs 44 psi

P235/75R15 108T

2205 lbs 50 psi

P245/65R17 111T

2403 lbs 50 psi

P245/70R16 111T

2403 lbs 50 psi

P245/70R17 108T

2205 lbs 44 psi

P255/60R18 112H

2469 lbs 50 psi

P255/65R17 110T

2337 lbs 44 psi

P255/70R16 109T

2271 lbs 44 psi

P255/70R18 113T

2535 lbs 44 psi

P265/60R18 110H

2337 lbs 44 psi

P265/65R17 112T

2469 lbs 44 psi

P265/70R16 112T

2469 lbs 44 psi

P265/70R17 113T

2535 lbs 44 psi

P275/55R20 111S

2403 lbs 44 psi

P275/65R18 116H

2756 lbs 44 psi

P275/70R16 114T

2601 lbs 44 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
