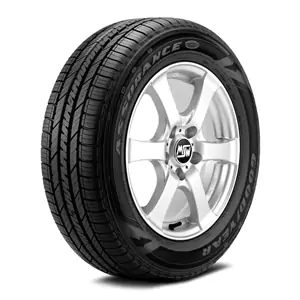

Goodyear Assurance Fuel Max Tire Pressure Chart

Goodyear Assurance Fuel Max tire pressure chart for 34 tire sizes with maximum tire load capacity range of 1048 to 1930 pounds and with maximum tire inflation range of 44 to 51 psi.

Select Goodyear Assurance Fuel Max tire size to find its maximum tire load capacity at its specified tire inflation. Tire load capacity and tire inflation settings may vary based on tire load range or ply rating. Check Goodyear Assurance Fuel Max tire sidewall for more information. Remember that psi value printed on the tire sidewall is the maximum tire pressure that Goodyear Assurance Fuel Max tire can be inflated to at its corresponding maximum weight capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Goodyear Assurance Fuel Max tires beyond the maximum tire load capacity and maximum tire inflation values indicated on the tire sidewall.

Check Goodyear tire pressure charts for other Goodyear tire models.

Amazing Deals and Deep Discounts on Tires

Goodyear Assurance Fuel Max Tire Pressure Chart

Tire Size Tire Size Type Tire Load Index Tire Speed Rating Maximum Tire Load Maximum Dual Tire Load Maximum Tire Inflation

175/60R16
82H

Metric 82 H 1048 lbs 51 psi Show Specs

185/65R15
88H

Metric 88 H 1235 lbs 51 psi Show Specs

195/55R16
87V

Metric 87 V 1202 lbs 51 psi Show Specs

195/65R15
91S

Metric 91 S 1356 lbs 51 psi Show Specs

205/55R16
91H

Metric 91 H 1356 lbs 51 psi Show Specs

205/60R16
92V

Metric 92 V 1389 lbs 51 psi Show Specs

205/65R15
94H

Metric 94 H 1478 lbs 51 psi Show Specs

205/65R16
95H

Metric 95 H 1522 lbs 51 psi Show Specs

215/45R17
87V

Metric 87 V 1202 lbs 51 psi Show Specs

215/55R17
94V

Metric 94 V 1478 lbs 51 psi Show Specs

215/60R16
95H

Metric 95 H 1522 lbs 51 psi Show Specs

225/55R16
95H

Metric 95 H 1522 lbs 51 psi Show Specs

225/55R17
97V

Metric 97 V 1610 lbs 51 psi Show Specs

235/60R16
100H

Metric 100 H 1764 lbs 51 psi Show Specs

235/60R17
102H

Metric 102 H 1874 lbs 51 psi Show Specs

235/65R16
103T

Metric 103 T 1930 lbs 51 psi Show Specs

P175/65R15
84H

P-Metric 84 H 1103 lbs 51 psi Show Specs

P185/60R15
84T

P-Metric 84 T 1103 lbs 51 psi Show Specs

P185/65R14
85H

P-Metric 85 H 1136 lbs 51 psi Show Specs

P195/60R15
87H

P-Metric 87 H 1202 lbs 51 psi Show Specs

P195/65R15
89H

P-Metric 89 H 1279 lbs 51 psi Show Specs

P195/65R15
89S

P-Metric 89 S 1279 lbs 44 psi Show Specs

P205/50R16
86H

P-Metric 86 H 1169 lbs 51 psi Show Specs

P205/55R16
89H

P-Metric 89 H 1279 lbs 51 psi Show Specs

P205/60R15
90H

P-Metric 90 H 1323 lbs 51 psi Show Specs

P205/60R16
91H

P-Metric 91 H 1356 lbs 51 psi Show Specs

P205/65R16
94T

P-Metric 94 T 1478 lbs 51 psi Show Specs

P205/70R15
95T

P-Metric 95 T 1522 lbs 51 psi Show Specs

P215/50R17
93V

P-Metric 93 V 1433 lbs 50 psi Show Specs

P215/55R16
91H

P-Metric 91 H 1356 lbs 51 psi Show Specs

P215/60R16
94H

P-Metric 94 H 1478 lbs 51 psi Show Specs

P215/60R17
95T

P-Metric 95 T 1522 lbs 51 psi Show Specs

P215/65R17
98T

P-Metric 98 T 1654 lbs 51 psi Show Specs

P225/55R17
95H

P-Metric 95 H 1522 lbs 51 psi Show Specs

All tire pressure data listed is for informational purposes only. TirePressure.com does not warrant or make any representations regarding the use of or the results of the use of this information. Always refer to the information on your tire sidewall for maximum tire inflation and tire load capacity.
