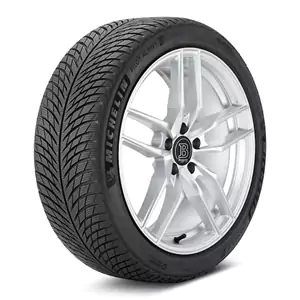

Michelin Pilot Alpin 5 Tire Pressure Chart

Michelin Pilot Alpin 5
Amazon eBay TireRack

Michelin Pilot Alpin 5 tires come in 18 tire sizes with maximum tire load capacity of 1356 pounds to 2149 pounds and maximum tire inflation of 50 psi to 51 psi.

Michelin Pilot Alpin 5 tire load capacity and tire inflation settings may vary based on tire load index / load range. Check Michelin Pilot Alpin 5 tire sidewall for more information. Tire inflation and load capacity values printed on the sidewall represent the maximum air pressure Michelin Pilot Alpin 5 tire can be inflated to support its maximum load capacity, and not necessarily the recommended tire pressure for your vehicle. Never overload or overinflate Michelin Pilot Alpin 5 tires beyond the maximum inflation and load capacity values indicated on the tire sidewall.

Select Michelin Pilot Alpin 5 tire size for its maximum tire inflation and load capacity.

Tire Size Max Load Capacity
(single / dual rear wheels)
Maximum Tire Pressure

205/55R17 91H

1356 lbs 51 psi

225/40R19 93W

1433 lbs 50 psi

225/45R19 96V

1565 lbs 50 psi

225/55R18 102V

1874 lbs 50 psi

235/50R19 103H

1929 lbs 50 psi

245/35R20 95V

1521 lbs 50 psi

245/40R19 98V

1653 lbs 50 psi

245/45R19 102V

1874 lbs 50 psi

255/35R20 97W

1609 lbs 50 psi

255/40R20 101W

1819 lbs 50 psi

255/45R20 105V

2039 lbs 50 psi

265/40R19 102V

1874 lbs 50 psi

265/40R20 104W

1984 lbs 50 psi

275/35R19 100V

1764 lbs 50 psi

285/40R19 107V

2149 lbs 50 psi

295/30R21 102V

1874 lbs 50 psi

295/35R20 105W

2039 lbs 50 psi

305/30R21 104V

1984 lbs 50 psi

All listed data and/or calculations are for informational purposes only. TirePressure.com does not warrant or make any representations regarding the accuracy of or the results of the use of this information. Always refer to vehicle owner's manual for recommended tire pressure settings. Never overinflate or overload a tire beyond its maximum capabilities listed on sidewall.
